Dimentions

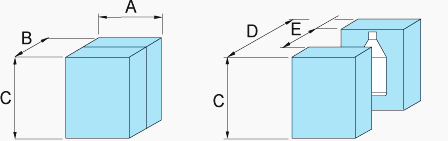

Molding Size
A(max.) B(min.) C(max.) D E(max.)
Model 40 70 90 100
A(max. ) 195 270 360~430 600
B(min. ) 145 180 220 220
B(max. ) 118 165 200 200
C(max. ) 170 340 370 310
D 256 320 380 380
E(max. ) 116 160 180 220
Center Distance Single Double Quadrudel Six-head
60 70 90 60 70
~80		 90 70~90 85~95
120~140 140
~170
∮ 130 130 165 95 100 60~70 40~70
H 180 300 320 300 320 300 300
H 180 300 320 300 320 Depending on the container’s
dimensions, 2 head~8 head possible
A 130 260 260 120 130
B 100 130 130 95 95 100
H 180 300 320 300 300 320
A 130 260 260 120 130
B 100 130 130 95 95 130
H 300 320 300 300 320
A 190 200 120 120 130
B 130 160 95 100

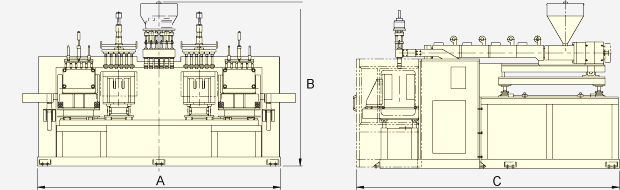

Machine External Dimensions
40D 70D 90D 100D
A 1600 2840 3200(3700) 4200
B 2450 2700 2850 2850
C 2780 3600 4045 4600
